RFEYE ARRAY 300 SERIES

High-performance, twin-channel system for simultaneous wideband radio monitoring and direction finding
Array-300-header
Array-300-top-off

RFeye Array 300 series overview

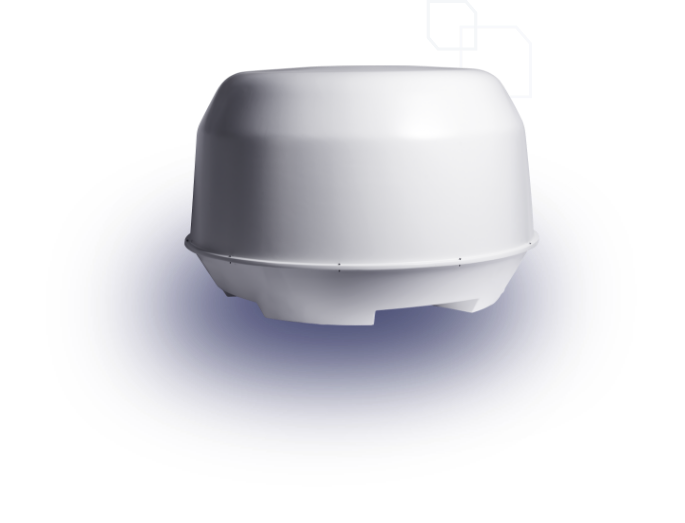

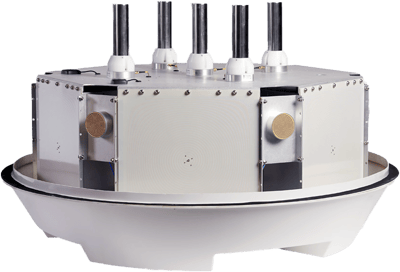

The Array 300 is a spectrum monitoring and direction-finding system for mobile or fixed deployment. It provides 100 MHz IBW and is available in three different receiver configurations, offering spectrum monitoring up to 8, 18, or 40 GHz. Each Array contains two RFeye Nodes to allow users to carry out multiple missions simultaneously. These RF sensors are closely connected to the antennas for maximum sensitivity.

Top arrow
Bottom arrow
Array-300-open-1

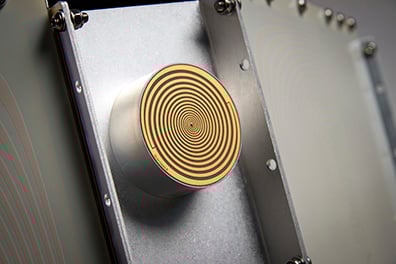

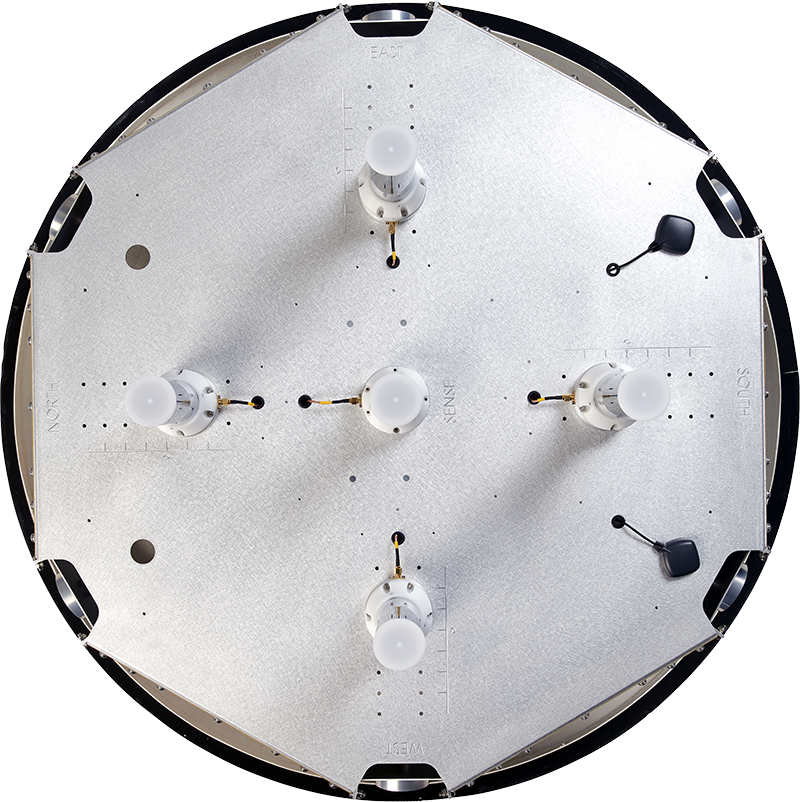

The Array 300 uses a unique multi-layer approach that is more sophisticated and versatile than traditional direction finding. It uses the Watson-Watt methodology for signals between 20 MHz and 300 MHz in addition to high-performance directional spiral antennas that reject interference and multipath and are optimized for different frequency bands. These spiral antennas are sensitive to most incoming signal polarizations, including all linear polarizations. This means the Array 300 can detect signals that are invisible to most DF systems. Also, the Array’s timing and synchronization features enable combined PoA, AoA, and TDoA techniques, allowing all signal types in the range to be mapped, irrespective of signal power, bandwidth, or frequency.

Icon
Array-300-detail
  • Ruggedized protection in harsh environments (-30°C – +55°C)
  • Increased probability of intercept thanks to a dual receiver design
  • Unique antenna layout delivers maximum consistency and accuracy
  • Unique calibration file means no need for recalibration
  • Network over large distances for wide-area monitoring
  • Immunity to distorted wavefronts
  • Minimal sensitivity to depolarization

RFeye Array at a glance

multi-layer-icon

Unique multi-layer approach

DF-antennas-icon

DF antennas

linear-signal-icon

All linear signal polarizations

Combined geolocation methodologies

Combined geolocation methodologies

100 MHz IBW wideband frequency monitoring

100 MHz IBW wideband frequency monitoring

record-icon

RF recording (I/Q capture)

Networked for multiple users & missions

Networked for multiple users & missions

Ruggedized protection from water or dust

Ruggedized protection from water or dust

RFeye-Array-Brochure-Cover-angle-600

BROCHURE

RFeye Array overview

Understand the technology behind the RFeye Array. Walk through the different size and configuration options. Learn how the multi-layer approach makes the RFeye Array superior to other DF techniques. Discover the powerful software that works with the RFeye Array.

Intelligent RF sensor

High performance, intelligent RF sensor with in-built EDGE processing, reducing backhaul data bandwidth.

The latest superheterodyne RF technology

RFeye Nodes are designed using the latest microwave components and technology for superior sensitivity, frequency stability, and selectivity.

Advanced signal intercept

Multi-stage pre-selection filtering and intelligent AGC support superior signal extraction in contested and noisy environments.

Gateway to powerful
software and APIs

CRFS hardware works with a software suite to monitor, capture, analyze, and geolocate signals of interest for complete spectrum visibility.

Talk to an advisor about the RFeye Array

Array comparison RFEYE ARRAY 125 RFEYE ARRAY 150 RFEYE ARRAY 300-8 RFEYE ARRAY 300-18 RFEYE ARRAY 300-40
Channels Single RF sensor (Node) Single RF sensor (Node) Dual RF sensors (Nodes) Dual RF sensors (Nodes) Dual RF sensors (Nodes)
Frequency range 9 kHz - 8 GHz 9 kHz - 18 GHz 9 kHz - 8 GHz 9 kHz - 18 GHz 9 kHz - 40 GHz
Direction finding frequency range 500 MHz - 8 GHz 500 MHz - 18 GHz 20 MHz - 8 GHz 20 MHz - 18 GHz 20 MHz - 40 GHz
VHF DF extender option (20 MHz - 300 MHz) N/A N/A Yes Yes Yes
Noise figures at maximum sensitivity 6-10 dB typical 7-18 dB typical 6-10 dB typical 7-18 dB typical 8.5-16 dB typical
Instantaneous bandwidth (IBW) 100 MHz 100 MHz 100 MHz 100 MHz 100 MHz
Sweep speed (typical) 280 GHz/s @ 2 MHz RBW 390 GHz/s @ 2 MHz RBW 280 GHz/s @ 2 MHz RBW 390 GHz/s @ 2 MHz RBW 232 GHz/s @ 2 MHz RBW
Supports PoA, AoA, TDoA, hybrid DF methods Yes Yes Yes Yes Yes
ISR MISSIONS AT SEA & ACROSS HOSTILE BORDERS
MoD BORDER SURVEILLANCE IN THE MIDDLE EAST
REAL-TIME DIRECTION FINDING  & FULL SPECTRUM AWARENESS
UPGRADING LEGACY SYSTEMS FOR PROACTIVE SPECTRUM MANAGEMENT
DETECTING RF INTERFERENCE AT ONE  OF THE WORLD’S BUSIEST SPACEPORTS
DEPLOYMENT STORIES
ISR MISSIONS AT SEA & ACROSS HOSTILE BORDERS

How combining ground & air-based RF sensors improved ISR and target acquisition.

Read the story
DEPLOYMENT STORIES
MoD BORDER SURVEILLANCE IN THE MIDDLE EAST

How a government agency secured its borders in a volatile region.

Read the story
DEPLOYMENT STORIES
REAL-TIME DIRECTION FINDING & FULL SPECTRUM AWARENESS

How a Southeast Asian government intelligence service secured multiple borders.

Read the story
DEPLOYMENT STORIES
UPGRADING LEGACY SYSTEMS FOR PROACTIVE SPECTRUM MANAGEMENT

How the Malta Communications Authority replaced old equipment with state-of-the-art solutions.

Read the story
DEPLOYMENT STORIES
DETECTING RF INTERFERENCE AT ONE OF THE WORLD’S BUSIEST SPACEPORTS

How a spaceport operator ensures the integrity of its payloads with 24/7/365 RF monitoring

Read the story

CRFS expertise

WP-Cover-Principles-of-geolocation
Principles of
geolocation
techniques

This white paper describes the underlying principles of geolocation techniques (AoA, TDOA, FDOA, & PoA) and outlines their applications.

WP-Passive-Geolocation
Passive geolocation
with 3D TDOA

Learn about the passive technique known as Time Difference of Arrival (TDOA), which uses the time difference between receipt of signals at spatially separated receivers to determine the location of the source.

WP-Cover-AoA
Angle of arrival / direction finding techniques

This white paper outlines the various forms of AoA , including how they work, how they can be applied in practice, and how they can be combined with other geolocation techniques, such as time difference of arrival (TDoA).

Explore hardware

CRFS offers a combination of fixed, tactical, and mobile hardware solutions, which can be used as versatile, re-deployable systems that do not require recalibration.
