RF sensor RFeye Node 100-18

Portable and rugged high-performance RF sensor for wideband spectrum monitoring and geolocation of transmitters up to 18 GHz
Group
Icon
drone

RFeye Node 100-18 overview

The RFeye 100-18 is a high-performance RF sensor with a 9 kHz – 18 GHz frequency range and a 100 MHz instantaneous bandwidth. The RFeye 100-18 enables operators to manage full military or commercial EMSO and geolocation with advanced signal intercept by incorporating the latest superheterodyne receiver technology.

Top arrow
Bottom arrow

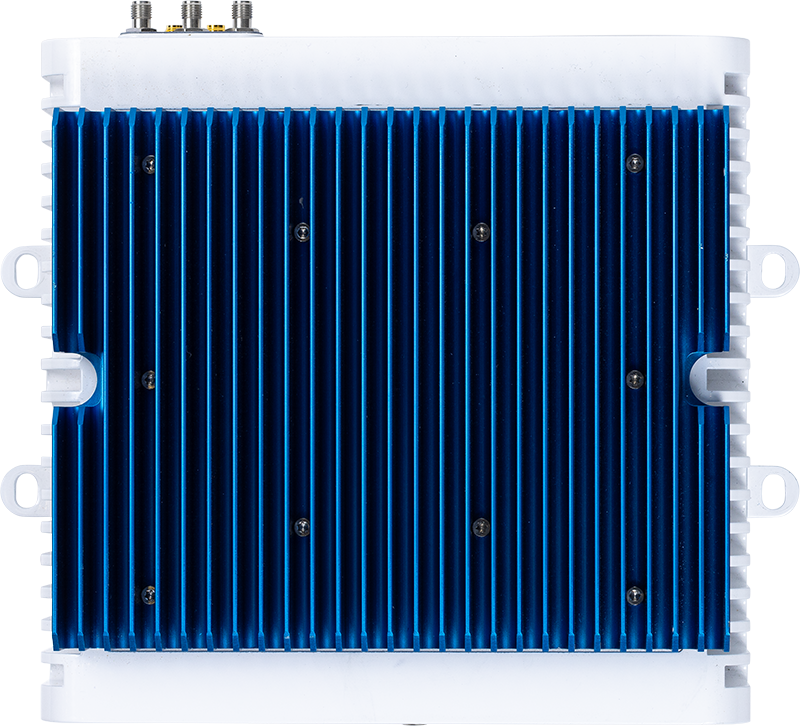

Node 100-8 Top-small

This fourth-generation RF sensor has in-built edge processing, reducing backhaul data bandwidth. Excellent phase noise, low noise figure, and superb spurious free dynamic range, coupled with FPGA technology and card design, enable easy integration and exploitation of the SDR and computer platform.

Node 100-8 Rear Angle Connectors-small-1
  • Real-time continuous spectrum operations
  • Finds low-power signals
  • Detects signals that have a low probability of intercept
  • Compatible with GPS, BeiDou, GALILEO, and GLONASS
  • Gateway to powerful software and APIs
  • Flexible deployment – rugged indoor or outdoor RF sensors for fixed, temporary, or mobile platforms

RFeye Node 100-18 at a glance

Intelligent RF sensor

Intelligent RF sensor

Networked for multiple

Networked for multiple
users & missions

Superior RF performance

Superior RF performance

Smaller

Small, light, fast

100 MHz IBW wideband

Advanced signal intercept

Group 2159

100 MHz IBW wideband frequency monitoring

RF recording (I/Q capture)

RF recording (I/Q capture)

Ruggedized protection from water or dust

Ruggedized protection
from water or dust

RFeye-Node-Brochure-Cover-angle-600

BROCHURE

RFeye Node overview

Discover our advanced superheterodyne RF technology using the latest microwave components and technology for superior sensitivity, frequency stability, and selectivity. Compare Node specifications, view the new RFeye Node models, and discover what makes them unique.

Easy installation, setup,
and operation

RFeye technology (COTS optimized) is easy to connect and install and does not require recalibration once set up.

Ruggedized protection
from water and dust

Designed for outdoor deployment in extreme environments, RFeye Nodes operate between -30°C – +55°C.

Small, light, fast

RFeye Nodes can be deployed on masts, tripods, within building ceiling tiles (TSCM solution), and as drone payloads. These same RF sensors are configured across all CRFS hardware (fixed, mobile, tactical, and in-field) platforms.

Gateway to powerful
software and APIs

CRFS hardware works with a software suite to monitor, capture, analyze, and geolocate signals of interest for complete spectrum visibility.

Talk to an advisor about the RFeye Node

IP67

IP67 rated

All RFeye Nodes are designed for outdoor deployment in extreme environments and operate between -30oC – +550C. The MIL-spec I/O connectors, weatherproof RF connectors and sealing gaskets provide IP67-rated protection.

Node comparison RFeye 40-8 RFeye 100-8 RFeye 100-18 RFeye 100-40
Frequency range 9 kHz - 8 GHz 9 kHz - 8 GHz 9 kHz - 18 GHz 9 kHz - 40 GHz
Noise figures at maximum sensitivity 6-10 dB typical 6-10 dB typical 7-21 dB typical 8.5-16 dB typical
Phase Noise at 1 GHz (20 kHz offset) -110 dBC/Hz -130 dBC/Hz -126 dBC/Hz -126 dBC/Hz
Instantaneous bandwidth (IBW) 40 MHz 100 MHz 100 MHz 100 MHz
Sweep rate 245 GHz/s 280 GHz/s 390 GHz/s 232 GHz/s
Node weight (ex noses / heatsink) 2.1 kg (5 lbs) 2.9 kg (6.4 lbs) 2.9 kg (6.4 lbs) 3.5 kg (8 lbs)
